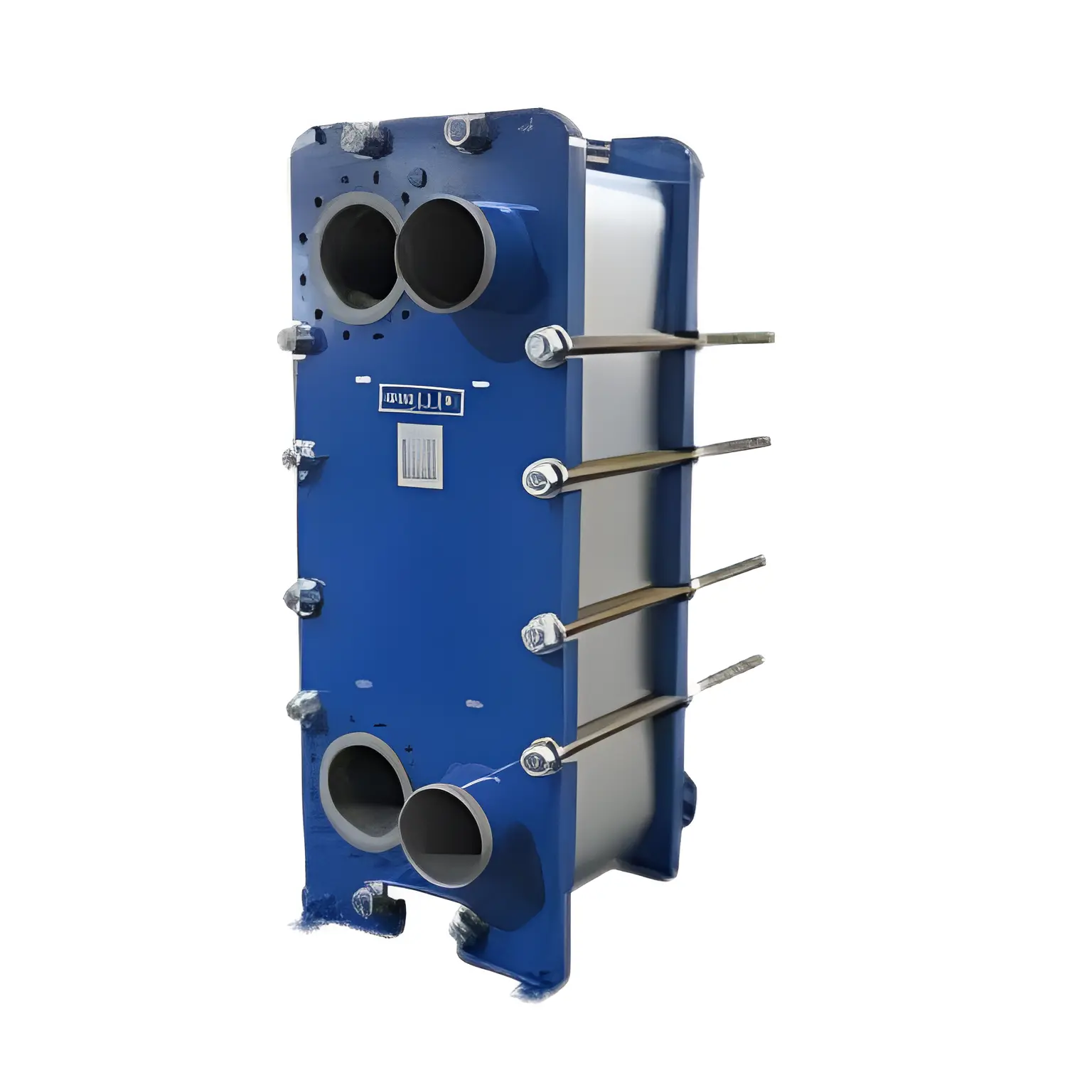

GEA Ecoflex NT100X Plate Heat Exchanger
The GEA Ecoflex NT100X Plate Heat Exchanger is a high-efficiency heat transfer unit designed for industrial cooling and heating applications. Manufactured by GEA Ecoflex GmbH, Germany, this plate heat exchanger is widely used in marine, chemical, power generation, HVAC, and process industries due to its compact design and excellent thermal performance.
The GEA Ecoflex NT100X Plate Heat Exchanger operates with a gasketed plate design that provides a large heat transfer surface area while maintaining a compact footprint. This design allows efficient heat exchange between two fluids while minimizing energy loss and operational costs.
Industrial plants prefer the GEA Ecoflex NT100X Plate Heat Exchanger for applications where reliable temperature control and high thermal efficiency are required. The plate construction enables easy maintenance, cleaning, and plate replacement, making it suitable for continuous industrial operation.
This particular GEA Ecoflex NT100X Plate Heat Exchanger was previously operating with water and a 38% ethylene glycol mixture, demonstrating its capability to handle common industrial cooling fluids. Plate heat exchangers like this model are frequently used in cooling systems, HVAC plants, engine cooling circuits, process cooling, and heat recovery systems. Plate heat exchangers are known for their high heat transfer efficiency and compact construction compared to traditional shell and tube heat exchangers.

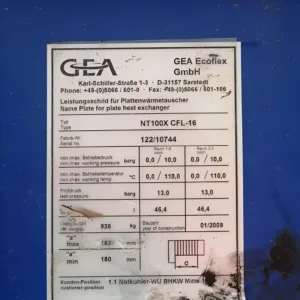

Technical Specifications:-
-
Manufacturer: GEA Ecoflex GmbH (Germany)
-
Model: NT100X CFL-16
-
Serial Number: 122/10744
-
Year of Manufacture: 2009
-
Working Pressure: Up to 10 barg
-
Test Pressure: 13 barg
-
Working Temperature: Up to 110°C
-
Net Weight: Approx. 838 kg
-
Operating Media: Water and 38% Ethylene Glycol
-
Condition: Used – Good Working Condition
Applications of GEA Ecoflex NT100X Plate Heat Exchanger
The GEA Ecoflex NT100X Plate Heat Exchanger is commonly used in a wide range of industrial sectors, including:
-
Marine and ship engine cooling systems
-
HVAC and district cooling plants
-
Chemical and process industries
-
Power generation plants
-
Oil and gas processing systems
-
Industrial water and glycol cooling systems
Because of its efficient plate design, the GEA Ecoflex NT100X Plate Heat Exchanger delivers high heat transfer performance while occupying less installation space compared to conventional heat exchangers.
Industrial Plate Heat Exchanger Design
The GEA Ecoflex NT100X Plate Heat Exchanger uses multiple thin metal plates assembled in a frame to create flow channels for hot and cold fluids. This arrangement increases turbulence and heat transfer efficiency, resulting in better thermal performance.
The gasketed plate construction also allows operators to expand capacity by adding additional plates or performing maintenance easily without replacing the entire unit.
