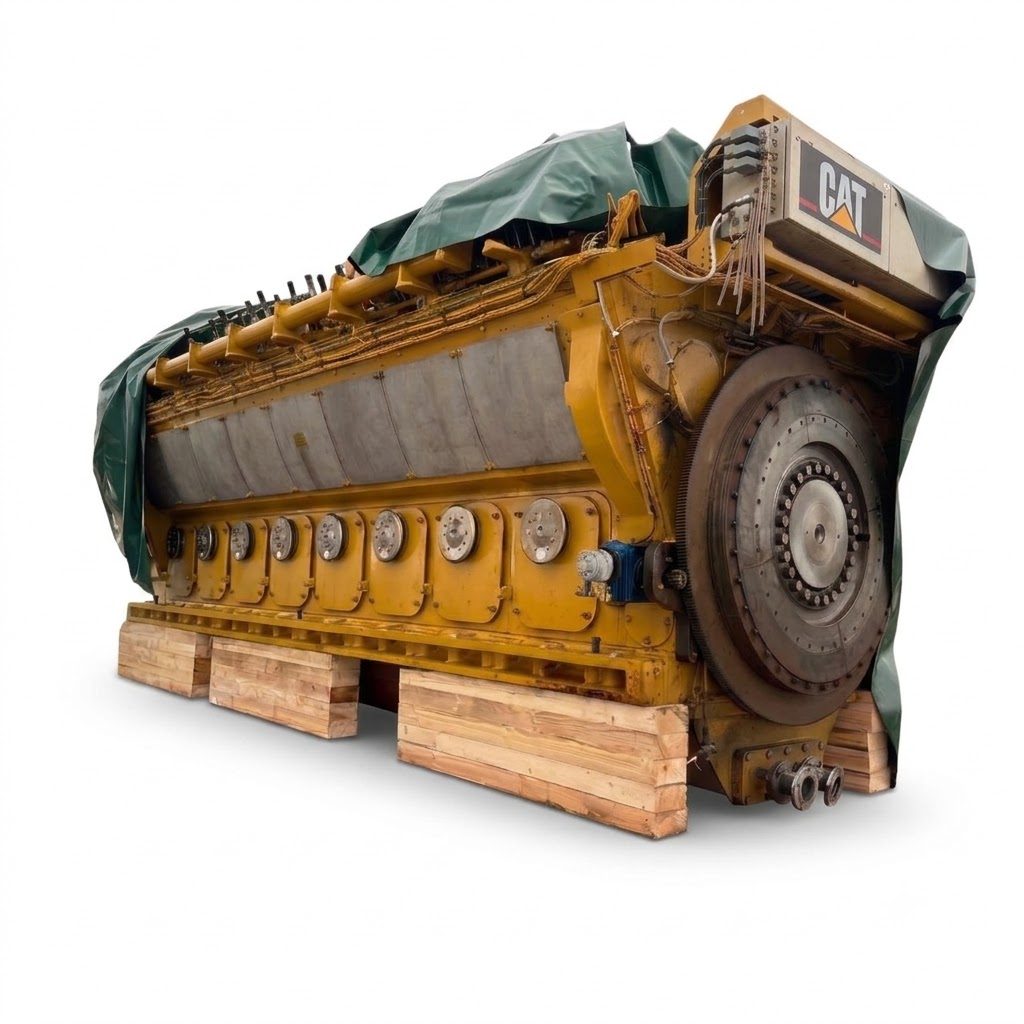

MaK (Caterpillar) G16CM34 Gas Genset – 6,100 kW / 6.1 MW

Abhi Marine Pvt. Ltd. is pleased to offer 1 Unit MaK (Caterpillar) G16CM34 Complete Gas Genset equipped with an AVK DIG 171 K/8W synchronous alternator.

The MaK G16CM34 is a heavy-duty 16-cylinder medium-speed gas engine manufactured by MaK Motoren GmbH & Co. KG, a Caterpillar company, and is rated at 6,100 kW at 750 RPM according to ISO 3046.

This complete Caterpillar-MaK gas power generation package is available in used condition with low running hours.

The engine is coupled to a high-voltage AVK 7,381 kVA synchronous alternator producing 11 kV, 50 Hz, 3-phase power at 750 RPM.

MaK / Caterpillar G16CM34 Engine Specifications

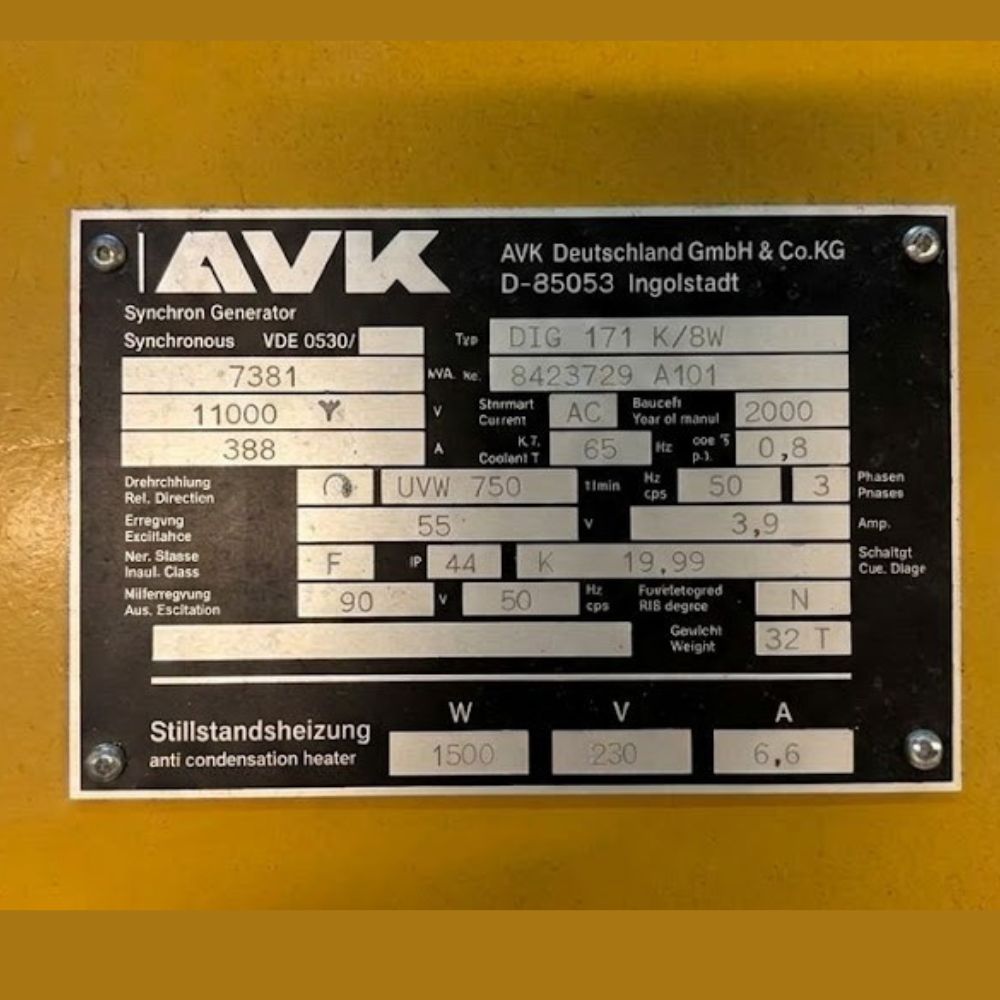

AVK 7,381 kVA Alternator Specifications

At 0.8 power factor, the 7,381 kVA alternator represents approximately 5.9 MW electrical output.

Caterpillar-MaK 6 MW-Class Gas Power Generation Package

This MaK Caterpillar G16CM34 gas genset combines a 6.1 MW medium-speed gas engine with an AVK 7.381 MVA high-voltage alternator, providing a substantial power-generation package for industrial and energy applications.

Key configuration:

• MaK / Caterpillar G16CM34 engine
• 6,100 kW engine output
• 16-cylinder gas engine
• 750 RPM medium-speed operation
• AVK 7,381 kVA alternator
• 11 kV output
• 50 Hz
• 3 Phase
• Low running hours
• 1 complete unit available

Applications

This MaK Caterpillar gas generator set can be considered for:

• Captive power plants
• Industrial power generation
• Gas-based power plants
• Independent power projects
• Manufacturing facilities
• Process industries
• Utility power generation
• Power plant expansion
• Replacement generating capacity
• Large industrial facilities

Why Consider This MaK Caterpillar G16CM34?

MaK Engine – A Caterpillar Company

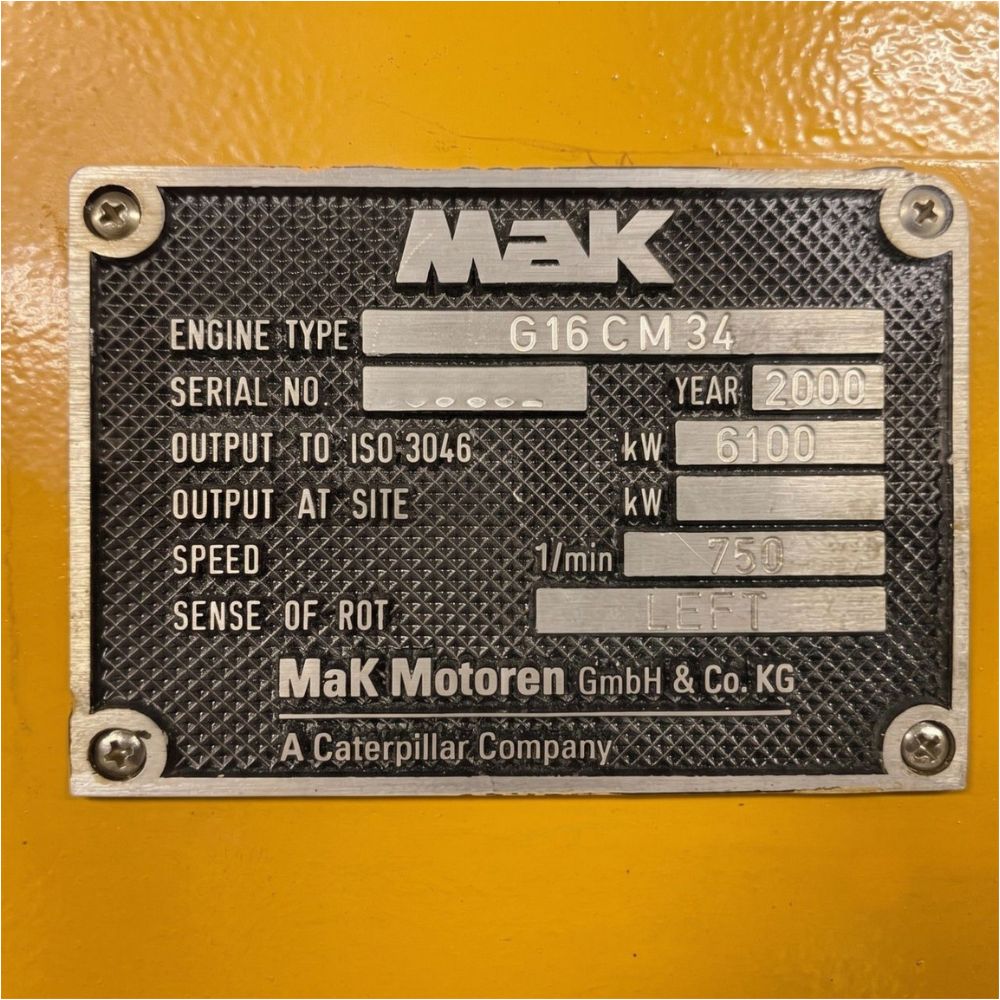

The engine manufacturer’s nameplate clearly identifies MaK Motoren GmbH & Co. KG as “A Caterpillar Company.”

This makes the unit relevant to customers searching for both MaK gas engines and Caterpillar-associated medium-speed gas power generation equipment.

Low Running Hours

The complete genset is available in used, low running hours condition, an important consideration for buyers evaluating large-capacity pre-owned gas generation equipment.

Complete Engine + Alternator Package

The package includes the MaK Caterpillar G16CM34 gas engine coupled with an AVK 7,381 kVA synchronous generator, rather than an engine-only configuration.

11 kV Output

The AVK alternator is rated at 11,000 volts, making this package particularly suitable for high-capacity industrial and power-plant applications requiring medium-voltage generation.

CAT G3520C Gas Gensets Also Available

In addition to this MaK (Caterpillar) G16CM34 gas genset, we are also in a position to offer Caterpillar CAT G3520C gas gensets through our trusted supply network, subject to current availability.

Customers looking for CAT G3520C, Caterpillar gas generators, MaK gas engines or other MW-class gas gensets are welcome to share their requirements.

Inspection & Commercial Offer

For serious inquiries, we can provide available:

• Equipment photographs
• Engine and alternator nameplate photographs
• Running-hour details
• Technical specifications
• Inspection arrangements
• Commercial quotation
• Current availability
• Shipping and logistics information

Please contact Abhi Marine Pvt. Ltd. with your required capacity, voltage, frequency and project details.

Equipment Summary

Product: MaK (Caterpillar) G16CM34 Complete Gas Genset
Manufacturer: MaK Motoren – A Caterpillar Company
Model: G16CM34
Quantity: 1 Unit
Condition: Used – Low Running Hours
Engine Power: 6,100 kW / 6.1 MW
Alternator: AVK DIG 171 K/8W
Alternator Capacity: 7,381 kVA
Voltage: 11 kV
Frequency: 50 Hz
Speed: 750 RPM
Year: 2000
